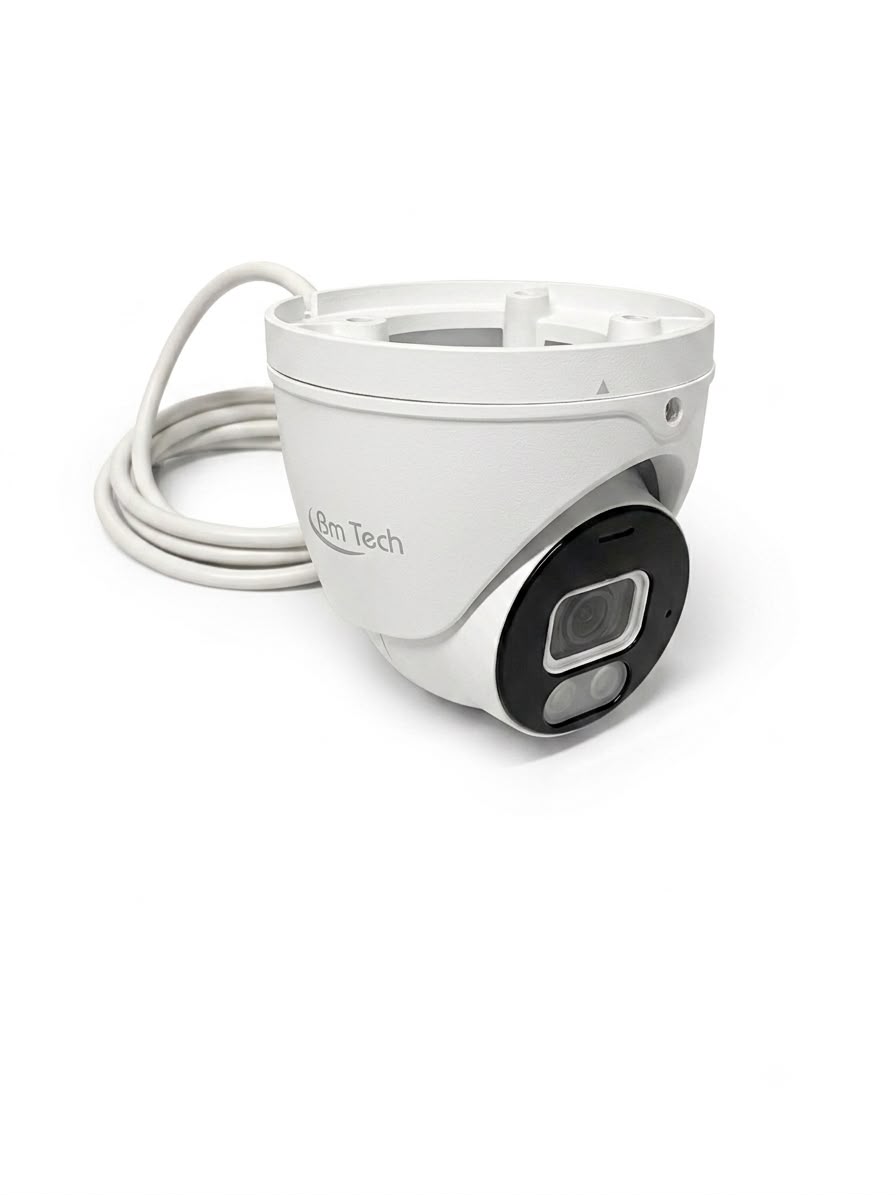

Full Color & Active Deterrence Series / ECO – 4MP Fixed Lens
תיאור
Model-BM-CHD398M-4M
| Imaging Device | 1/3" |
| Effective Pixels | 4MP 2560(H)x1440(V) |
| Min. Illumination | Color 0.002 Lux @ F1.0(AGC ON); B/W 0 lux @ IR ON |
| Lens Type/Focal Length | Fixed(M12) 2.8mm/3.6mm |
| Max. Aperture Ratio | F1.0 |
| Angular Field of View | Horizontal: 95°, Vertical: 51°, Diagonal: 112° |
| Min. Object Distance | 2m |
| IR LED | 1pc |
| Warm Light | 2pcs |
| IR Viewable Distance | Up to 25m |
| Warm Light Viewable Distance | Up to 20m |
| Wide Dynamic Range | DWDR |
| Image Setting | Full Color Mode / Day&Night Mode / Smart Illumination |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 256GB |
| Audio | Built-in microphone & Speaker |
| Hardware Reset | Yes |
| Smart Feature | SMD (Pedestrian & Vehicle), Line Crossing, Intrusion, Region Entrance, Region Exiting |
| Video Compression Format | H.265/H.264 |
| Max. Resolution | 4MP(2560×1440)@25fps |
| Video Quality Adjustment | 128Kbps ~ 4Mbps |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Application Programming Interface | ONVIF |
